Short hairpin RNA (shRNA) – I 편
shRNA 란?
RNAi 현상을 유도하는 loop structure 의 short hairpin RNA로 target mRNA 에 상보적 결합을 하여 mRNA degradation 유도
|
Drosha
|
Nucleus에서 pri-miRNAs와 shRNAs processing하는 RNase III enzyme
|
|
Dicer
|
Ribonuclease (RNase) III enzyme은 dsRNA를 20–25 bp siRNAs로 cleavage하고 3’ 말단에 2nt overhang을 남김
|
|
RISC
|
minimal RNA-induced silencing complex (RISC) 는 dsRNA를 인식하는 효소 중합체
① dsRNA를 ssRNA로 풀어주는 Helicase activity기능
② RISC가 Anti-sense를 취해 target mRNA에 가져감
③ nuclease activity 기능으로 target mRNA를 degradation 시키거나 cleavage 시킴
|
|

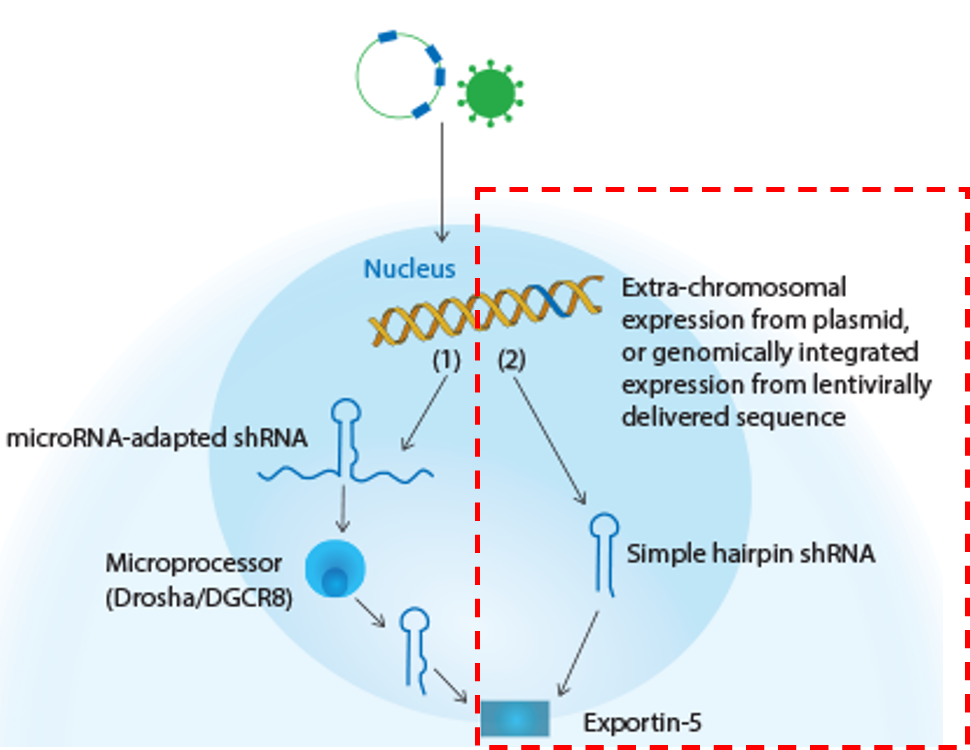

(1) microRNA-adapted shRNAs
Off-target effect 가능성을 최소화하면서 endogenous RNAi pathway를 통한
효과적인 RNAi를 위해 microRNA scaffold-specific attributes 사용
|
 |

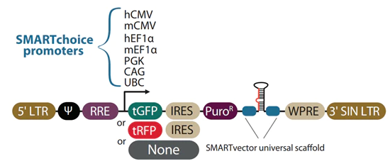

• SMARTvector Lentiviral shRNA
1) Human, mouse, rat gene을 target으로 하는 microRNA 기반 shRNA
2) 7개의 promoter 중에서 선택하여 특정 세포에 맞게 SMARTvector shRNA 선택 가능
• SMARTvector Inducible Lentiviral shRNA
1) SMARTvector lentiviral shRNA는 Tet-inducible technology 결합
2) mCMV, PGK, hEF1a, mEF1a 의 inducible promotor 중 선택 가능
• GIPZ Lentiviral shRNA
1) microRNA가 적용된 shRNA 디자인으로 효율적인 gene silencing 가능
2) Human과 mouse lentiviral vector 또는 high-titer lentiviral particle로 제공
• TRIPZ Inducible Lentiviral shRNA
1) SMARTvector lentiviral shRNA는 Tet-inducible technology 결합
2) human을 위한 lentiviral vector constructs 이용 가능
|
(2) Simple hairpin shRNAs
21개의 base pair sense, antisense stem의 간단한 hairpin과
6개의 base pair loop를 사용하는classic hairpin, rules-based shRNA design 제공
|
 |
• TRC Lentiviral shRNA
Human과 mouse에 적용되는 RNAi Consortium의 Lentiviral shRNA collection
|
SMARTvector shRNA
|
GIPZ
|
TRIPZ
|
TRC
|
|
|
Species
|
Human, Mouse, Rat
|
Human, Mouse
|
Human
|
Human, Mouse
|
| Promoter | Choice of 7 constitutive* and 4 inducible promoters |
Human CMV Pol II
|
TRE-min-CMV
|
U6 Pol III
|
|
Vector backbone
|
Lentiviral
|
Lentiviral
|
Lentiviral
|
Lentiviral
|
|
Stem-loop format
|
MicroRNA-adapted
|
MicroRNA-adapted
|
MicroRNA-adapted
|
Simple
|
|
Fluorescent reporter gene
|
GFP/RFP
|
GFP
|
RFP
|
|
|
Guaranteed silencing
|
●
|
●
|
●
|
|
|
In vivo RNAi
|
●
|
●
|
●
|
●
|
|
Create stable cell lines
|
●
|
●
|
●
|
●
|
|
Recommended for primary
and non-dividing cells
|
●
|
●
|
●
|
●
|
|
Inducible expression
|
●
|
●
|
||
|
Whole genome library
availability |
Human, Mouse, Rat
|
Human, Mouse
|
Human
|
Human
|
|
Formats
|
Bacterial glycerol stock,
High-titer lentiviral particles,
Gene families and pathways
|
Bacterial glycerol stock,
Arrayed library format,
Gene families and pathways,
High-titer lentiviral particles, shRNA Starter Kit
|
Bacterial glycerol stock,
Arrayed library format,
Gene families and pathways, shRNA Starter Kit
|
Bacterial glycerol stock,
Arrayed library format,
Gene families and pathways
|
