[Hoefer] 단백질 전기영동장치 구성품 안내

Hoefer Electrophoresis Unit

                                   -SE250, 260 구성품 안내 list-

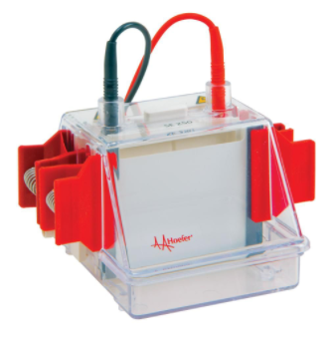

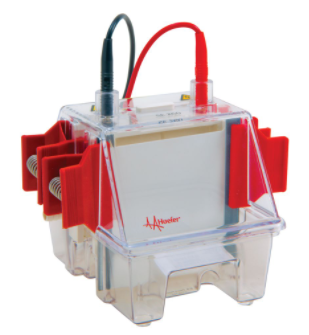

SE250	SE260
[SE250-10A-.75]	[SE260-10A-.75]
Lower Buffer Chamber Upper Buffer Chamber/Cooling Core Safety Lid with High Voltage Leads Casting Cradle w/Sealing Gasket Set Casting Clamp Assemblies, 2 pcs Cams, 4 pcs Glass Plates, Rectangular, 10 x 8 cm, 10 pcs Alumina Plates, Notched, 10 x 8 cm, 2 pcs Spring Clamps, 4 pcs Combs, 10 well, 0.75mm thick, 2 pcs T-Spacers, 0.75mm thick, 4 pcs Well Locating Decals, 2 pcs Gel Seal	Lower Buffer Chamber Upper Buffer Chamber/Cooling Core Safety Lid with High Voltage Leads Casting Cradle w/Sealing Gasket Set Casting Clamp Assemblies, 2 pcs Cams, 4 pcs Glass Plates, Rectangular, 10 x 10.5 cm, 10 pcs Alumina Plates, Notched, 10 x 10.5 cm, 5 pcs Spring Clamps, 4 pcs Combs, 10 well, 0.75mm thick, 2 pcs T-Spacers, 0.75mm thick, 4 pcs Well Locating Decals, 2 pcs Gel Seal

* 상기 제품들은 다른 구성품으로 교체 불가합니다.

사진

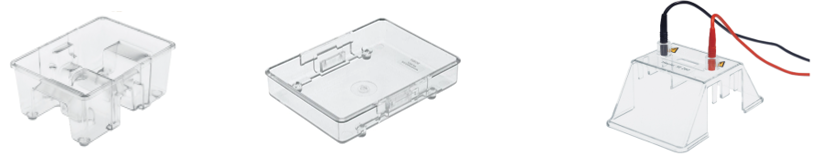

품번	SE255D	SE255	SE256	SE6056-HV
품명	Lower Buffer Chamber  for SE260	Lower Buffer Chamber for SE250	SE250/SE260 Lid with High Voltage Leads  (선+뚜껑)	High Voltage Leads 2 pcs (선)
사진
품번	SE212	SE252	SE208	SE254B
품명	Well Locating Decal 2 pcs	Spring Clamps–4/pk	Foam Gasket	Upper Buffer Chamber Cooling Core (includes Foam Gasket)

사진
품번	SE245	SE6005L	SE249
품명	Dual Gel Caster	Cams–4/pk	Casting Clamp Assembly-1 each (includes thumbscrews 6pk)
사진
품번	SE6003U-2	SE246
품명	Thumbscrews-12pk	Sealing Gasket–2/pk

사진	품번	품명
	SE2119T-2-XX	T-Spacers, 8 cm Length, 1 cm Width, 2/pk (두께 별로 마지막 코드 상이)
	SE2619T-2-XX	T-Spacers, 10.5 cm Length, 1 cm Width, 2/pk (두께 별로 마지막 코드 상이)
	SE202GN-5	Notched Glass Plates, 10 x 8 cm, 5 pcs
	SE262GN-5	Notched Glass Plates, 10 x 10.5 cm, 5 pcs
	SE202P-10	Rectangular Glass Plates, 10 x 8 cm, 10 pcs
	SE262P-5	Rectangular Glass Plates, 10 x 10.5 cm, 5 pcs
	SE202N	Notched Alumina Plate, 10 x 8 cm
	SE202N-10	Notched Alumina Plates, 10 x 8 cm, 10 pcs
	SE262N-5	Notched Alumina Plates,10 x 10.5 cm, 5 pcs
	SE211A-X–XX	Combs (X: Well 수, XX: Comb의 두께)
