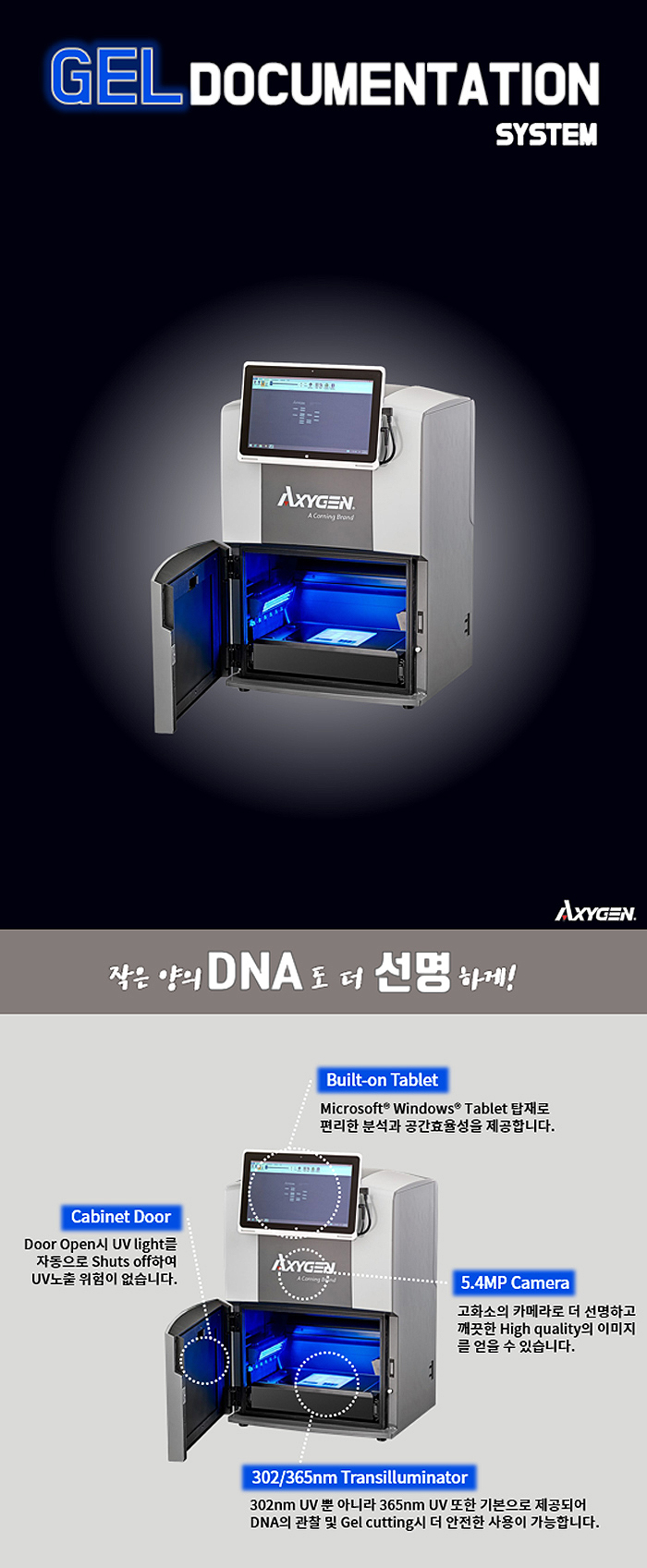

Axygen GEL Documentation System

2018-12-07

Gel Documentation System Gel Documentation System-BL
Camera 5.4 MP image resolution 5.4 MP image resolution
Lens f1.8 f1.8
Light Sources • Epi White

• Dual wavelength transillumination at 302 nm and 365 nm

• Epi White

• Dual wavelength transillumination at 302 nm and 365 nm

• Epi Blue

Trans White Light Illumination Tray Optional Optional
Field of View 15 cm x 20 cm 15 cm x 20 cm
Cabinet • Door sensor to prevent accidental exposure to UV; automatically shuts off UV light when door is open

• Safety override, enabling band cutting on the UV transilluminator with automatic turn off after 5 minutes

• Door sensor to prevent accidental exposure to UV; automatically shuts off UV light when door is open

• Safety override, enabling band cutting on the UV transilluminator with automatic turn off after 5 minutes

Emission Filter 590 nm 590 nm
3-position Filter Slider No Yes
Certifications CE, cTUVus CE, cTUVus
Product Footprint 12″ x 15″ (30.48 cm x 38.1 cm) 12″ x 15″ (30.48 cm x 38.1 cm)
Computer • Operating system: Windows 8

• Minimum hardware requirements: 1.4 GHz processor speed, 2 GB RAM, 16 GB free hard disk space, 2 USBs

• Tablet included: Windows 8 tablet computer enables compatibility with existing networks, as well as easy setup

• Bluetooth and wireless compatible, or USB to LAN compatible

• 10.1″ touch screen

• 2 GB of storage for short term data saving
